From: £340.00 ex VAT
The elegant, stylish and highly effective Fin Tube Radiator is ideal for modern high spec commercial interior or refurbishment projects. Its distinct and unusual design is highly robust and efficient. Standard lengths of 1m and 2m, powder coated in black or white are available from stock with options of 50mm or 80mm tube diameters with corresponding overall fin diameters of either 108mm or 137mm . Bespoke orders welcome for lengths of up to 6 meters and for a curved design option.
All kW heat outputs in the drop-down menu are based on 75˚C mean water temperature, 20˚C Ambient temperature, 0.3m/s water velocity.
Send enquiry or call on 01450 372103
Ideal for today’s high spec commercial interior or refurbishment projects this highly efficient, ingenious finned tube radiator design amplifies heat output in such a beautiful, simple way. The fins provide an extended surface area that delivers a much greater amount of heat than a conventional water-fed radiator of similar dimensions.

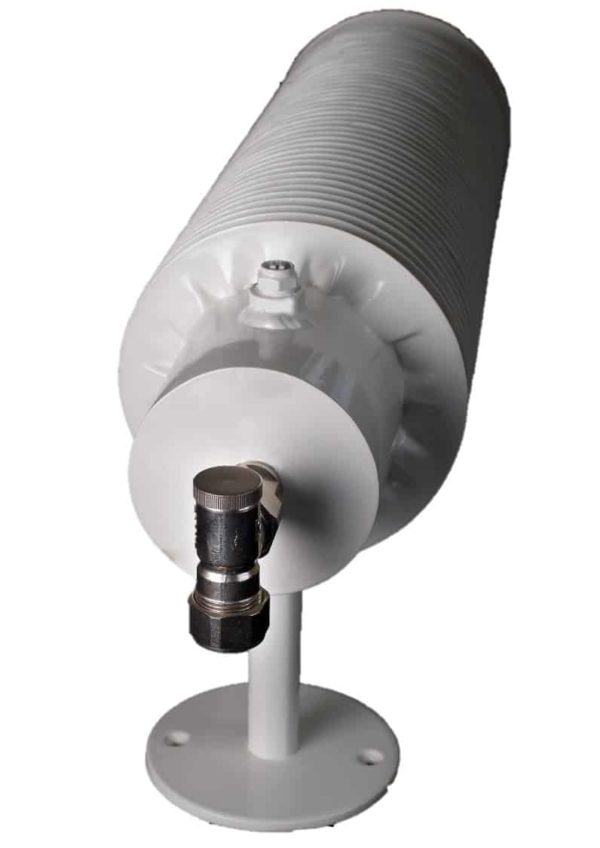

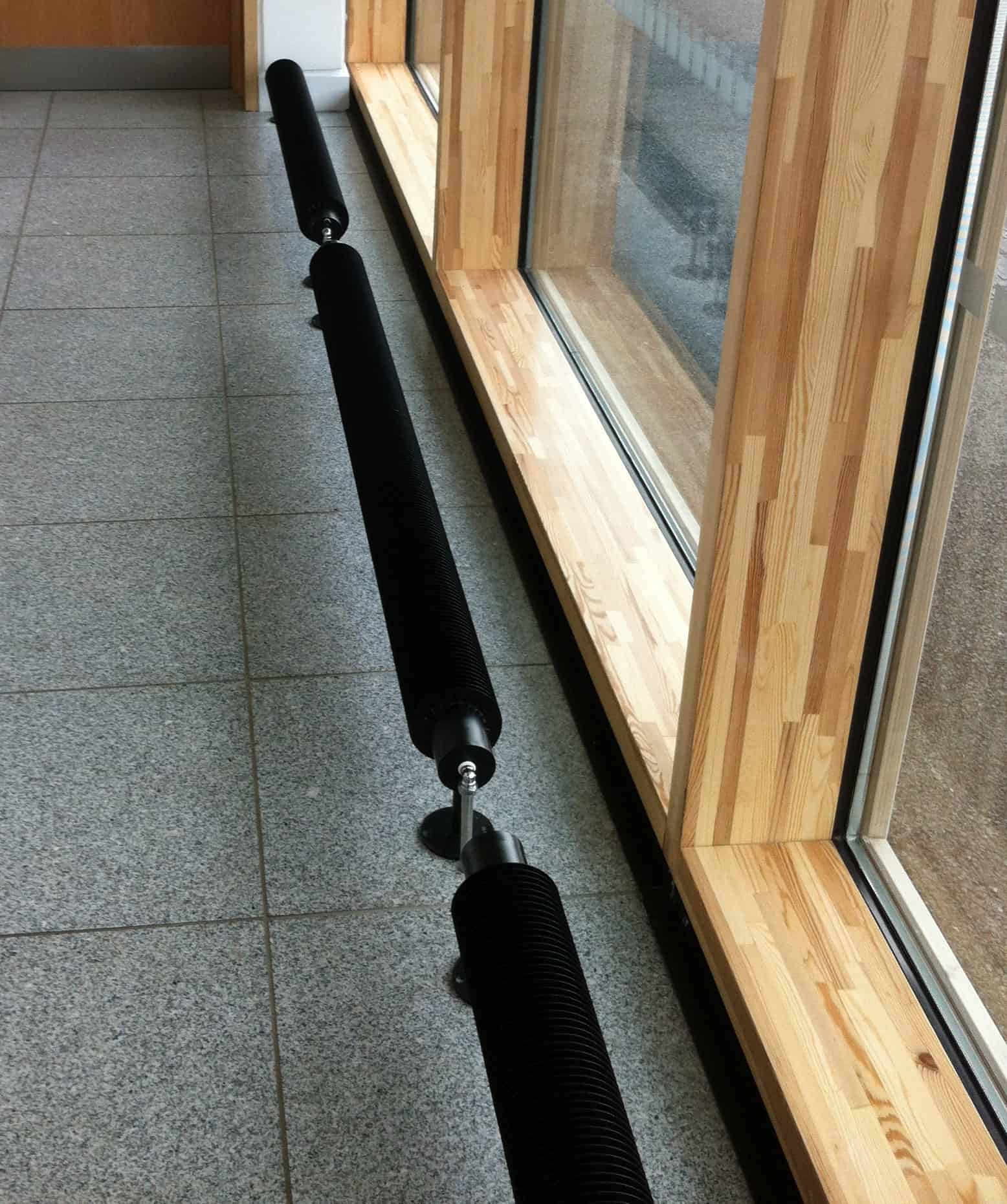

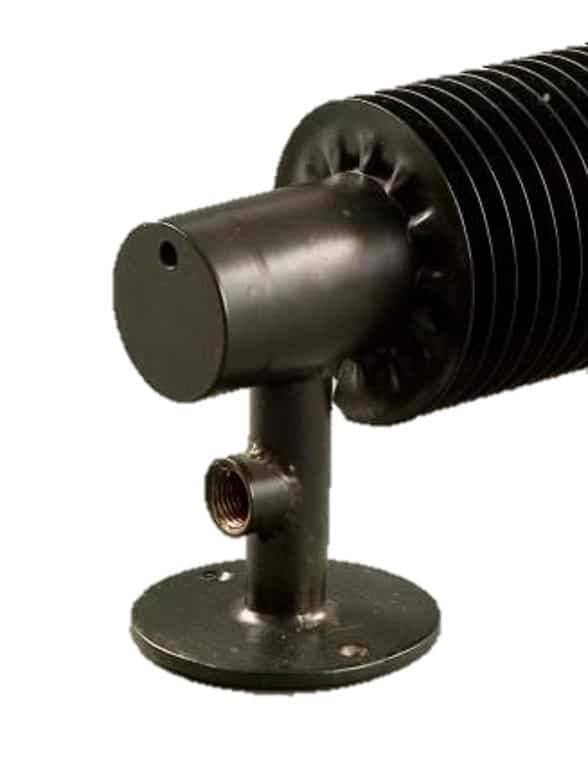

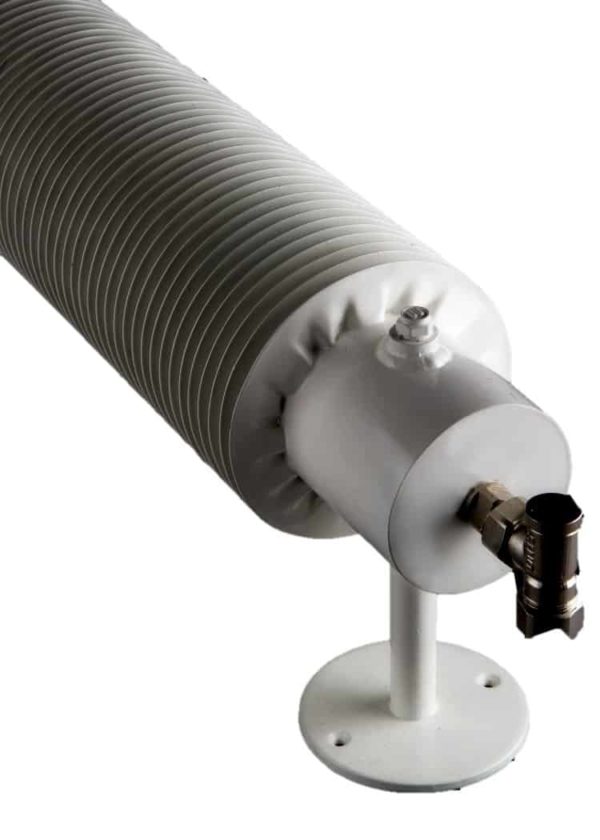

Manufactured right here in our factory, our robust stylish finned tube radiators are designed for use with piped LPHW heating systems and standard radiator fittings. The standard range offers choice of 50mm and 80mm tube diameters, lengths of 1 and 2m and powder coated colours of either black or white. These low maintenance steel radiators are floor mounted as standard and in a long corridor, installing several of these heaters side by side makes quite a design statement. If you prefer a wall mounting however please contact our helpful sales team.
In addition to the 8 models offered in the standard range, Finned Tube Radiators can be made to order in longer lengths up to 6m, in any RAL colour. There is also a curved radiator option available at a radius of 2m.
The heat outputs in table below are based on a 75˚C mean water temperature, 20˚C Ambient temperature, and 0.3m/s water velocity. To see a table of heat outputs at different hot water temperatures, different tube thicknesses and fin pitches, please just download the brochure.
| Model | Length (m) | Tube Nominal Bore (mm) | Fin Width (mm) | Fin Pitch (mm) | Diameter Over Fins (mm) | Weight (kg) | Colour | Heat Output (W) at 75C |
|---|---|---|---|---|---|---|---|---|
| FTR50/25/10-1B | 1.0 | 50 | 25 | 10 | 108 | 9.2 | Black | 522 |
| FTR50/25/10-1W | 1.0 | 50 | 25 | 10 | 108 | 9.2 | White | 522 |
| FTR50/25/10-2B | 2.0 | 50 | 25 | 10 | 108 | 18.4 | Black | 1044 |
| FTR50/25/10-2W | 2.0 | 50 | 25 | 10 | 108 | 18.4 | White | 1044 |
| FTR80/25/10-1B | 1.0 | 80 | 25 | 10 | 137 | 14.2 | Black | 671 |
| FTR80/25/10-1W | 1.0 | 80 | 25 | 10 | 137 | 14.2 | White | 671 |
| FTR80/25/10-2B | 2.0 | 80 | 25 | 10 | 137 | 28.4 | Black | 1342 |
| FTR80/25/10-2W | 2.0 | 80 | 25 | 10 | 137 | 28.4 | White | 1342 |
Finned Tube Radiators should be installed by a suitably qualified person.
Alternatively, contact our own installation team for a quote.
