Our team will review your project, evaluate options, and provide certified CAD drawings to ensure our products meet your needs.
Trusted.™ Bespoke Heat Exchanger Designs
Commissioning a bespoke heat exchanger designs from Turnbull & Scott is highly cost-effective as it will be tailored exactly to your requirements, with precise thermal tolerances using robust materials and manufacturing techniques honed over 90 years.
In line with our custom heat exchanger designs, we possess the capability to manufacture these specialized products to meet your specific needs. Our heat exchanger products are renowned for their reliability and long service life, minimising repair and maintenance costs, as well as downtime and disruption.
We have clients who have used our products for decades and have been able to gain many more years of service through refurbishment, as only high grade materials are utilised.
Process
Design Software
Research-backed
Our software manages various fluids, performs essential calculations, advises on standards, and streamlines design from inquiry to sign-off.
In line with our custom heat exchanger designs, we possess the capability to manufacture these specialized products to meet your specific needs. Our heat exchanger products are renowned for their reliability and long service life, minimising repair and maintenance costs, as well as downtime and disruption.
We have clients who have used our products for decades and have been able to gain many more years of service through refurbishment, as only high grade materials are utilised.
Process
Our team will review your project, evaluate options, and provide certified CAD drawings to ensure our products meet your needs.
Design Software
Research-backed
Our software manages various fluids, performs essential calculations, advises on standards, and streamlines design from inquiry to sign-off.
A STEAM TO AIR HEATER DESIGN

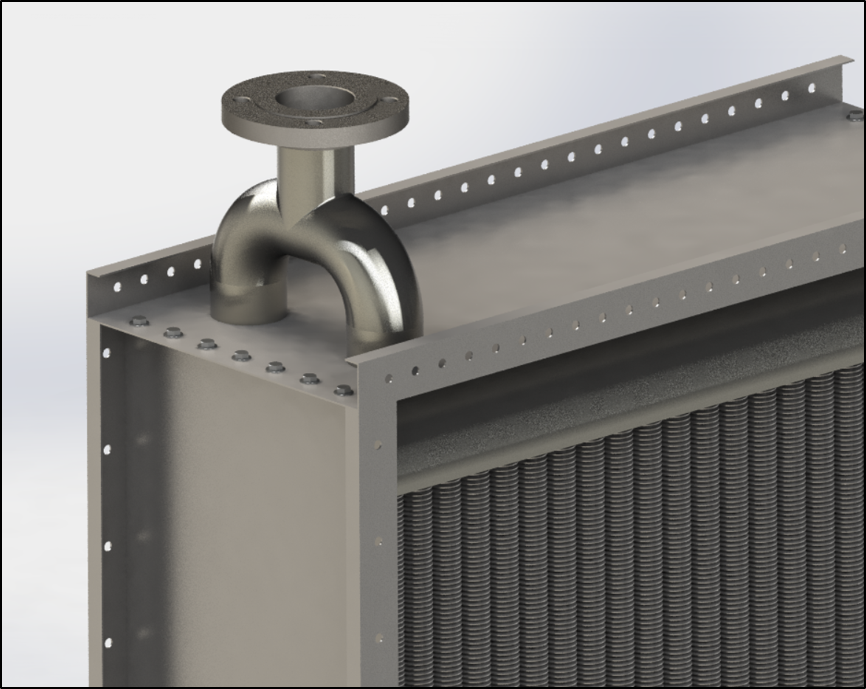

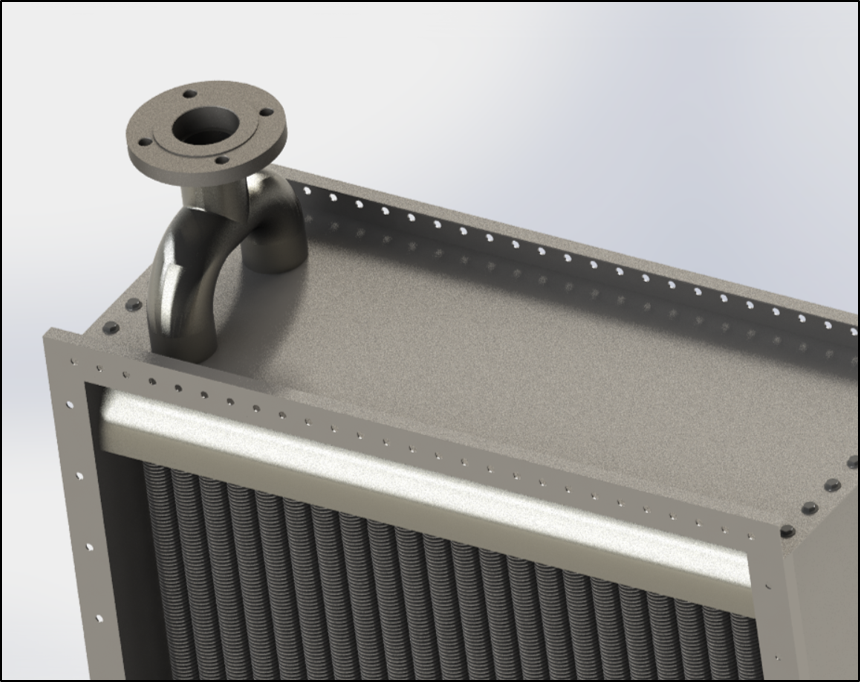

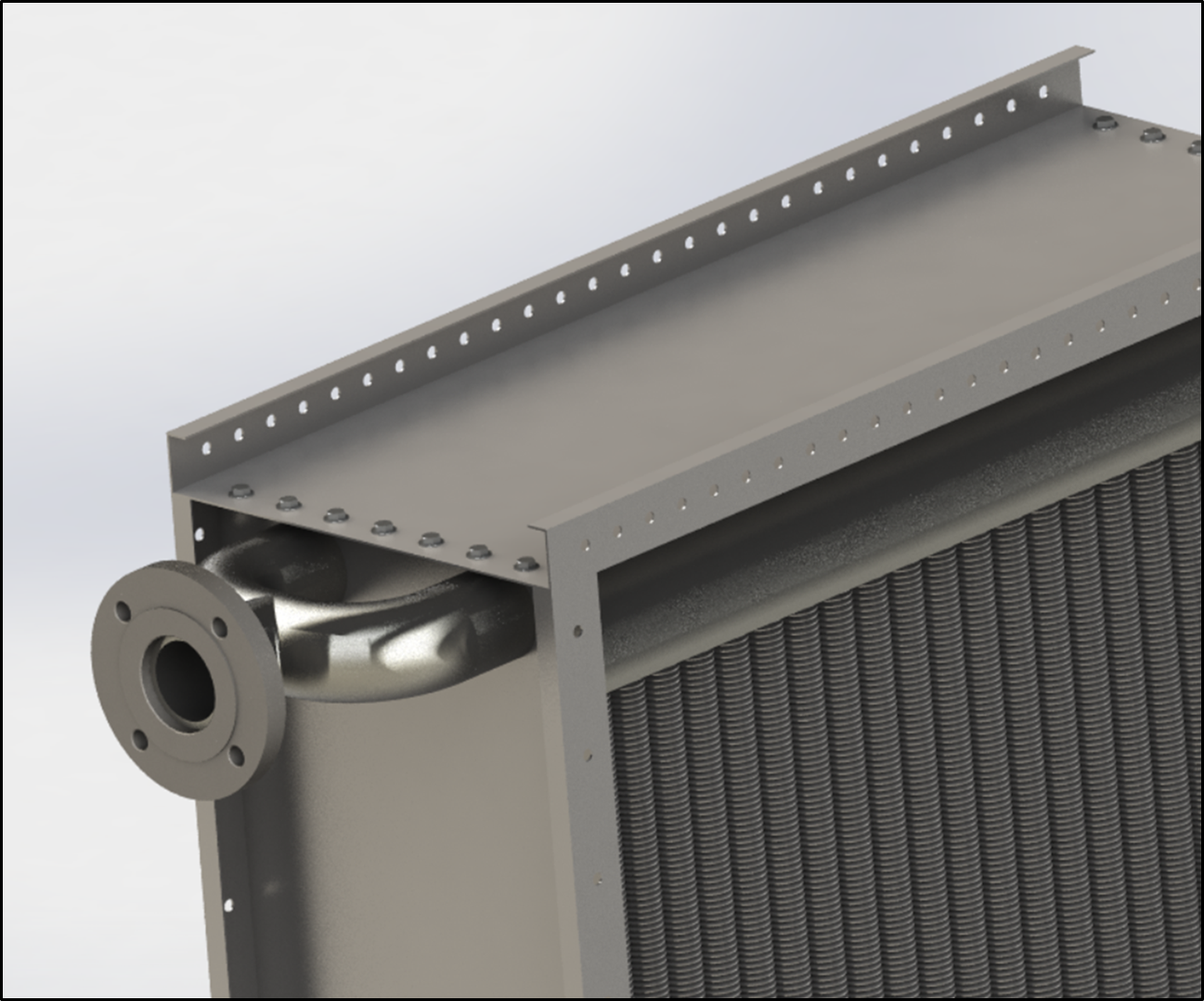

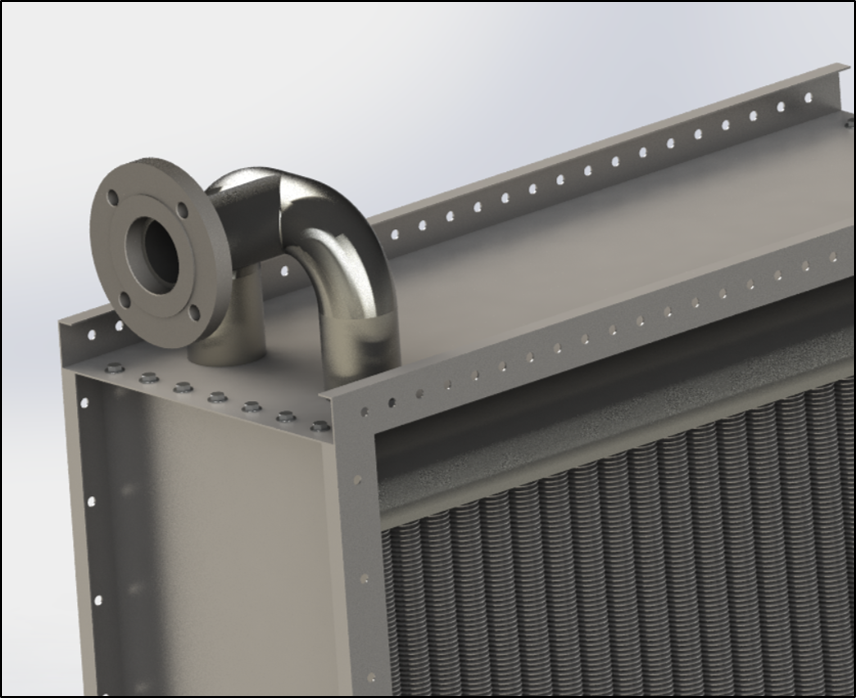

Rendered 3D CAD images of Steam to Air Heater for industrial drying application. Steam tube-side entering at top. Condensate exiting from bottom. Headers D-shaped arrangement -half tube and tube plate. Single Bi-frucated inlet options for high duty double header arrangement.
